StreamPad - Web-Based Controller Input Visualizer

A web-based controller input visualizer that displays real-time button presses in a DDR/Guitar Hero style with colorful scrolling rectangles.

Note: The GitHub repository for this project is private.

Demo Video

Features

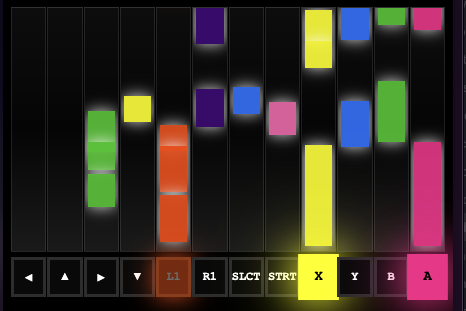

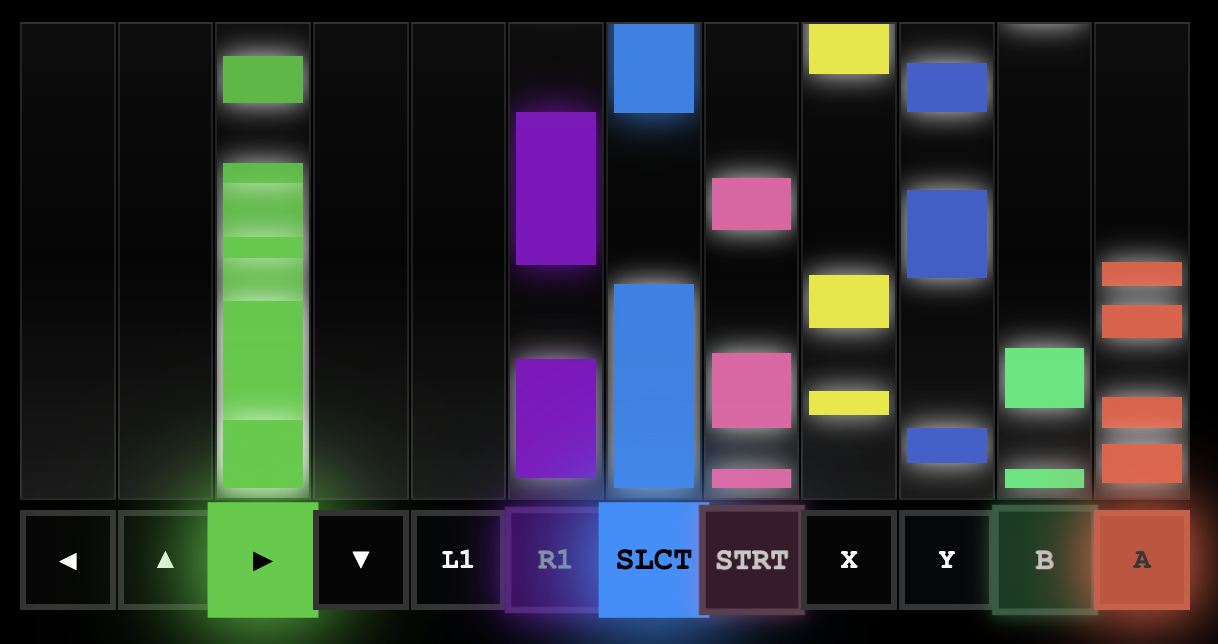

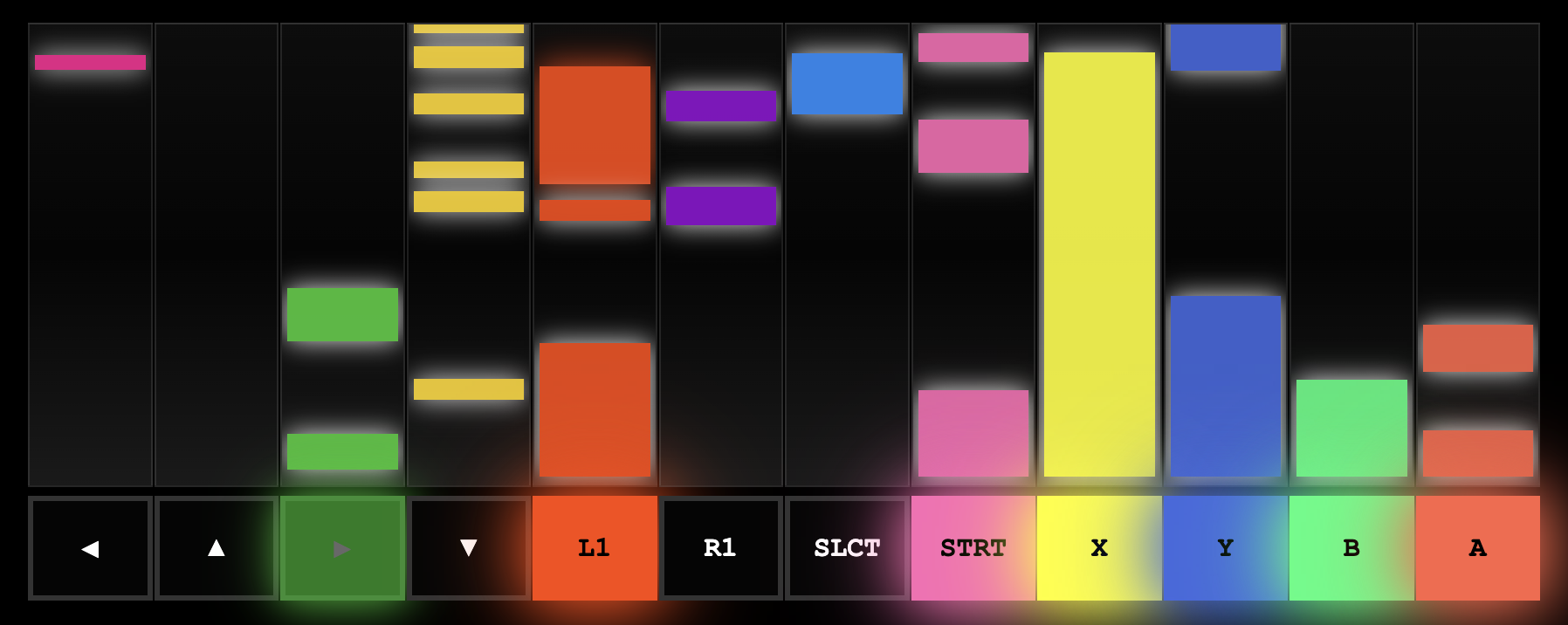

• DDR-Style Visualization - Button presses create colorful rectangles that scroll upward
• Real-time Input - Instant visual feedback with rectangle length matching press duration
• Multiple Controller Support - Works with Switch, Xbox, PlayStation, and more
• Zero Dependencies - Pure HTML/CSS/JS implementation
• Browser-Based - No installation required, runs directly in web browsers

Quick Start

1. Open index.html in a modern web browser
2. Connect your controller via USB or Bluetooth
3. Press any button to see colorful rectangles scroll upward
4. Hold buttons longer to create longer rectangles!

How It Works

• Tap a button → Short colored rectangle appears and scrolls up
• Hold a button → Rectangle grows longer while held, then scrolls up when released
• Each button has its own unique vibrant color
• Press ESCAPE to fix any stuck buttons

Supported Controllers

Fully Tested & Working

• Nintendo Switch Pro Controller - Full button mapping, D-pad via buttons
• Nintendo SNES Controller (USB/Switch Online) - Full button mapping, D-pad via axes
• PlayStation 4 (DualShock 4) - Standard mapping
• PlayStation 5 (DualSense) - Standard mapping
• Xbox Controllers - Standard mapping
• 8BitDo SN30 Pro - Standard mapping

Controller Issues?

If your controller isn't working correctly or shows phantom button presses:

1. Use the Debug Tool: Open controller_debug.html to see exactly what your controller reports

   • Check button indices when pressing each button
   • Check axis values for D-pad movement
   • Use this info to understand your controller's layout

2. Check Browser Compatibility:

   • Chrome/Edge: Best support
   • Firefox: Good support
   • Safari: May have quirks with some controllers

3. Try Different Connection Methods:

   • USB vs Bluetooth can report differently
   • Some controllers need specific modes (e.g., D-pad vs X-input mode)

Technical Implementation

Built with pure web technologies, StreamPad demonstrates:

• Gamepad API Integration: Uses the browser's native Gamepad API for controller input
• Real-time Animation: Smooth scrolling animations using requestAnimationFrame
• Dynamic Visualization: Rectangle length corresponds to button press duration
• Cross-Platform Compatibility: Works across different operating systems and browsers
• Responsive Design: Adapts to different screen sizes and orientations

Use Cases

Perfect for:

• Streaming Overlays: Show controller inputs during gameplay streams
• Input Testing: Debug controller issues and verify button mappings
• Educational Demos: Visualize game controls for tutorials
• Accessibility: Visual feedback for controller inputs
• Game Development: Test controller integration and responsiveness

Troubleshooting

Phantom Button Presses (Pro Controller Issue)

Controller Not Detected

• Try unplugging and replugging the controller
• Refresh the page after connecting
• Check browser console for error messages

Stuck Buttons

• Press ESCAPE key to clear all stuck states
• This is an emergency cleanup that resets everything
